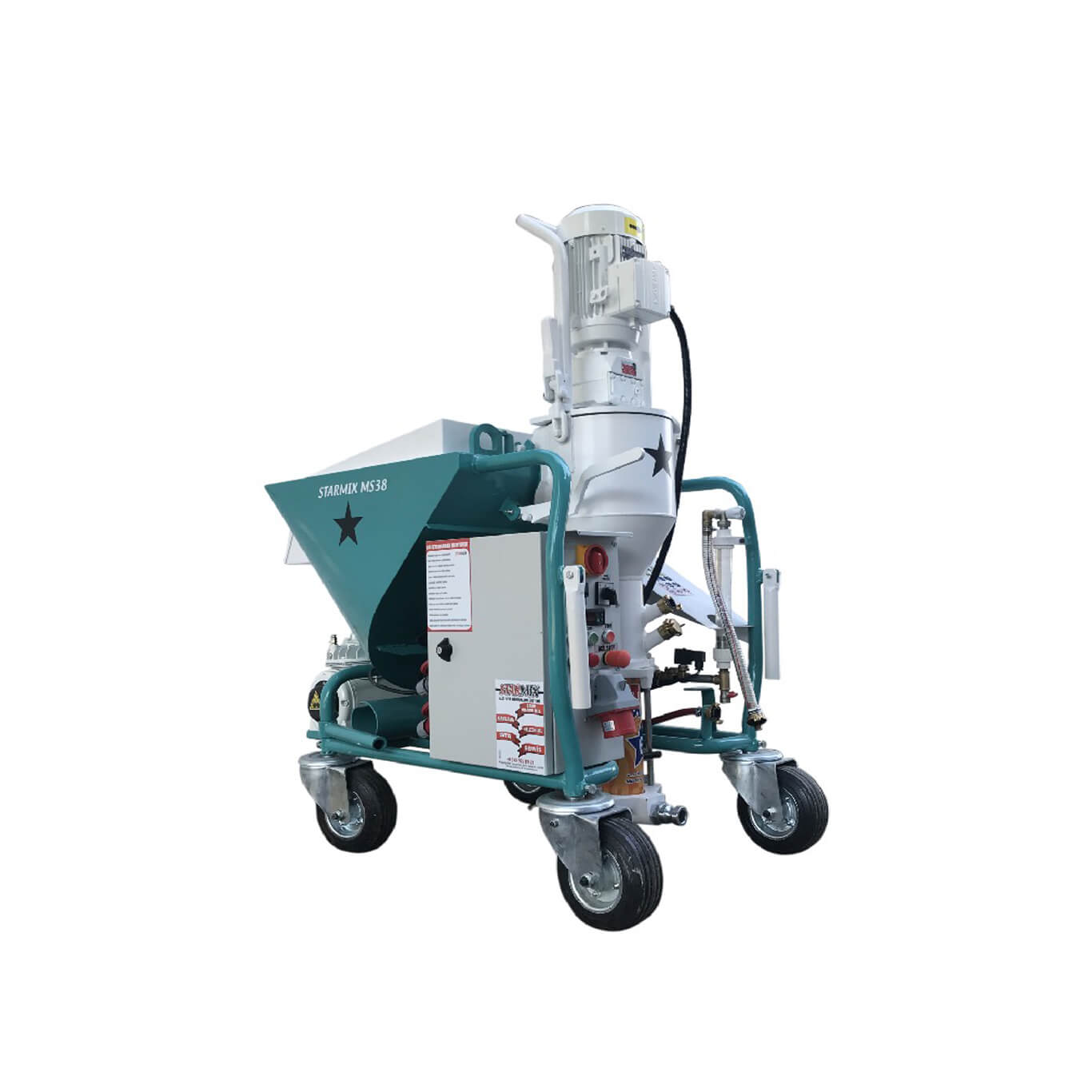

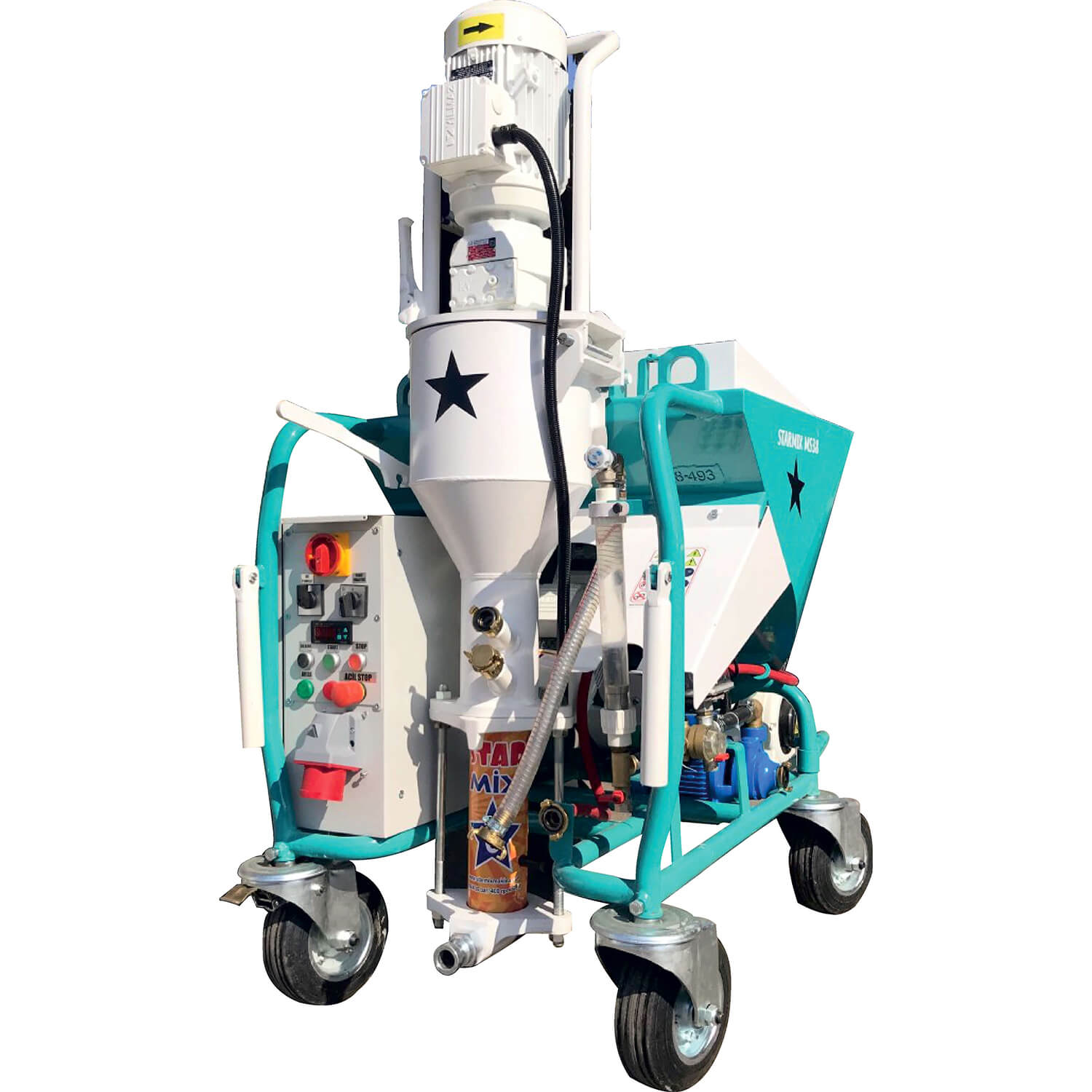

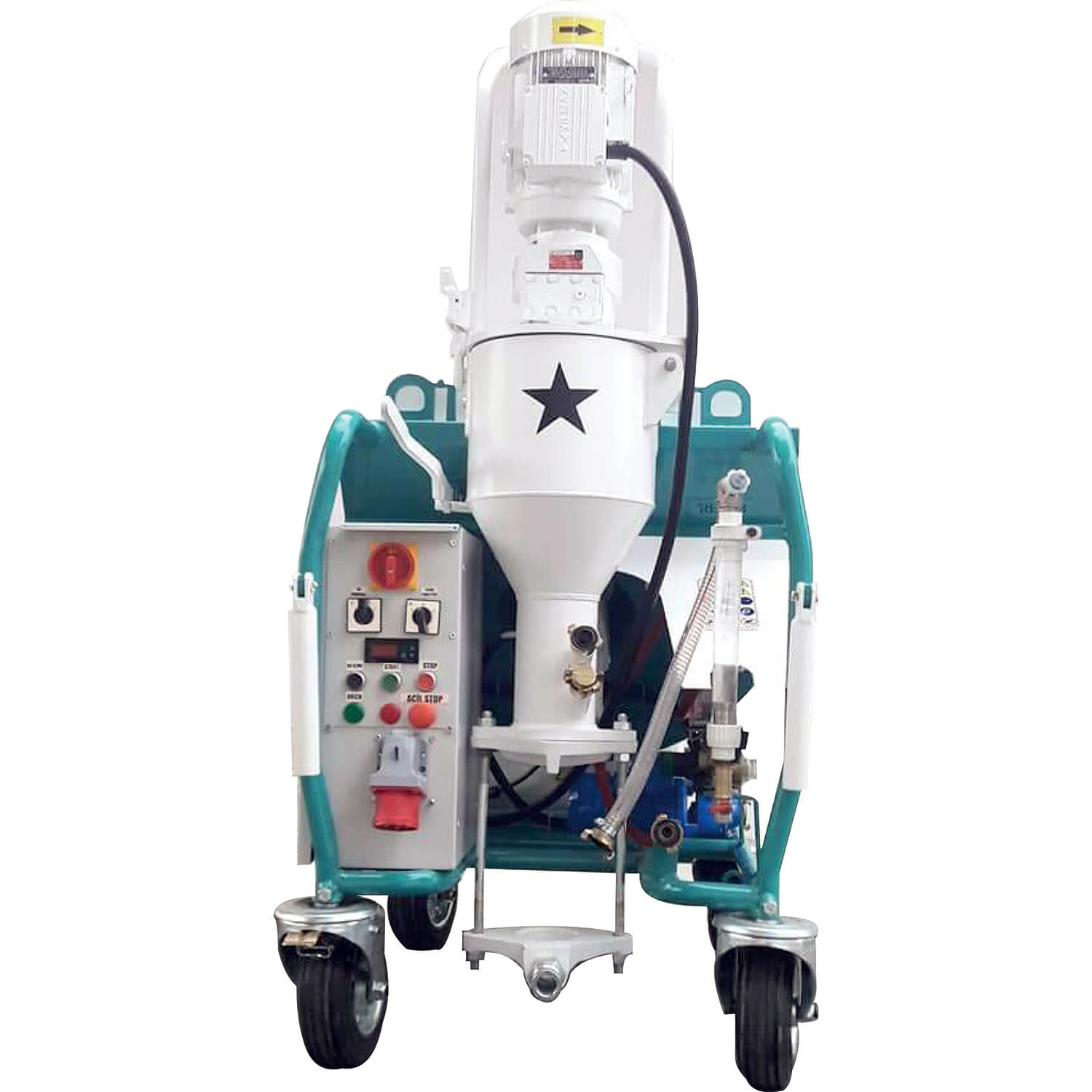

Starmix MS38 Gypsum Plastering Machine

//Starmix MS38 Gypsum Plastering Machine

Starmix MS38 Gypsum Plastering Machine

Technical information

  • Plaster Mortar Disposal capacity: 25 liters / min.
  • The pulse pumping pressure: 30 bar
  • At distance: max. 50 m
  • Operation mode: 380 V, 50 Hz
  • Pump (mixs is) engine: 5.50 kW
  • Loader (drum) engine: 0.55 kW
  • Carrier electric cable: 4 × 4 mm 2
  • Machine Protection insurance: 3 × 25
  • Water connection: 3/4 “
  • Water pressure: minimum 2.5 bar
  • Compressor capacity: 0.9 kW, 250 liters / min
  • Remote control: vpnömatik
  • The pumping hose diameter: 25 mm Ø
  • Boiler capacity: 150 liters
  • Dimensions (L / W / H): 1350 x 750 x 1550 mm
  • Loading height: 940 mm
  • Total weight: 320 kg

Description

Starmix MS38 Gypsum Plastering Machine

Starmix MS38 Monster Machine Machine Strom plaster works with 380 volts. Expert team of the most preferred models that STARMIX MS-38, is a native plaster machine. Enhanced chassis and is working on building sites thanks to automation system with at least shuttle service. STARMIX MS-38, gypsum or cement-based material of each kind of dry mixture is continuously and fully automatically form a homogeneous mix and spray plaster application which pumps high performance plastering machine.

STARMIX MS-38 plaster machine due to improved sensors and failures of the control panel is easily stimulating the user can not easily understandable due to provide. In this case, minimize the possibilities of service at construction sites.

Technical information

  • Plaster Mortar Disposal capacity: 25 liters / min.
  • The pulse pumping pressure: 30 bar
  • At distance: max. 50 m
  • Operation mode: 380 V, 50 Hz
  • Pump (mixs is) engine: 5.50 kW
  • Loader (drum) engine: 0.55 kW
  • Carrier electric cable: 4 × 4 mm 2
  • Machine Protection insurance: 3 × 25
  • Water connection: 3/4 “
  • Water pressure: minimum 2.5 bar
  • Compressor capacity: 0.9 kW, 250 liters / min
  • Remote control: vpnömatik
  • The pumping hose diameter: 25 mm Ø
  • Boiler capacity: 150 liters
  • Dimensions (L / W / H): 1350 x 750 x 1550 mm
  • Loading height: 940 mm
  • Total weight: 320 kg

Scope of application

  1. Plaster applications
  2. Lime plaster applications
  3. Cement-based plaster applications
  4. Lime plaster applications
  5. Masonry mortars
  6. Insulation plaster applications
  7. Injection mortar
  8. Reinforcing and adhesive mortars
  9. Self-leveling screed applications

… and many more applications can be made.

Standard Equipment

Pump team: D 6-3

Mixser motor : 5,50 kW

Drum engine: 0.55 kW

The mortar transport hose: 40 bar Ø 25 mm, 15 m, coupling

Air transport hoses: 10 mm 16 m, Geka coupling

Water transport hose: 1 “clapper, 5 m

Control panel: Phase relay

Spray gun: Ø 25 mm, 14 mm play apparatus

Electrical cable: 4 × 4 mm2 TTR, 25 m

HANDY K2 compressor 250 l / min. 6 bar

The water pump 1 HP (horsepower)

Su flowmetre:  150-1,500 l/sa.

The mixer shaft
